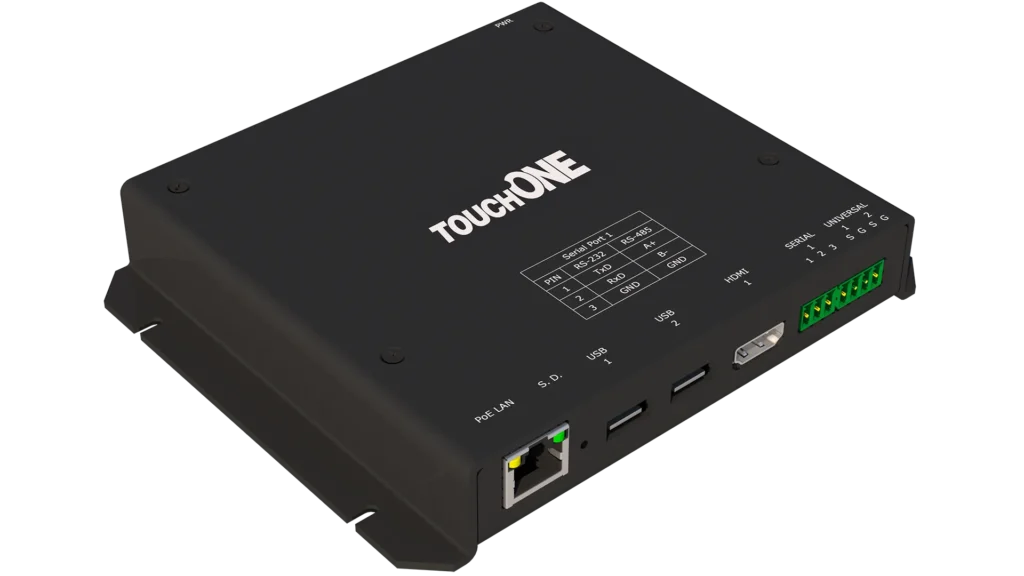

The touchONE-overview is a standalone graphic player that shows the status of several meeting rooms at once on a large display, e.g. at a reception. It connects over HDMI (Full HD or 4K, landscape or portrait), works directly with calendar systems such as Microsoft 365, Microsoft Exchange and Google Workspace, and is powered over a single PoE Ethernet cable.
🛡️ 2 years warranty
The touchONE-10-W is a wired 10.1” on-wall reservation panel with edge-to-edge front glass, RGB LED room-status indicators and a built-in…
CUE Assist is a user-friendly planning and reservation tool for quickly finding and booking meeting rooms, workplaces, parking places and…
CUE Addin is a Microsoft Outlook add-in that integrates the reservation of rooms, workstations, parking spaces and other shared resources…
Description The touchONE-7-W is a wired on-wall reservation panel offering a clean, modern design with edge-to-edge front glass and a…
| SKU | CS0510 |
|---|---|
| CPU | • i.MX 8M Quad application processor • Quad Arm® Cortex®-A53 core at 1.5 GHz |
| Memory | • RAM 4 GB • Flash 32 GB |
| Button | • System default |
| Indicator | • Power LED |
| Firmware | • Room reservation overview • Admin web for setup |
| Network | • 10/100/1000 BaseT LAN, RJ-45 connector • 802.1X authentication mechanism supported • Proxy Server support |
| USB | • USB 1 Host for USB HID-compliant touch screens • For proper use see power supply specifications |
| AV connection | • HDMI output - HDMI 2.0a-compliant • Resolution Full HD (1920 x 1080) or 4K (3840 x 2160) |
| Other connections | • Not supported by the application |
| Power supply | • Power over Ethernet (PoE) • PoE IEEE 802.3af / Class 0 for one USB usage, max. 0.5 A output (USB2 mode) • PoE+ IEEE 802.3at / Class 4 for both USBs usage, max. 0.9 A output each (USB3 mode) |
| Physical | • Slim aluminum enclosure for the back of screen installation • Protection IP30 • Dimensions 153.5 x 125 x 25 mm / 6.0” x 4.9” x 1.0” • Weight 0.4 kg / 0.9 lb |
| Environment conditions | • Operating temperature 10° to 40° C, ambient with airflow • Storage temperature 0° to 60° C • Relative humidity 10% to 90% non-condensing |
