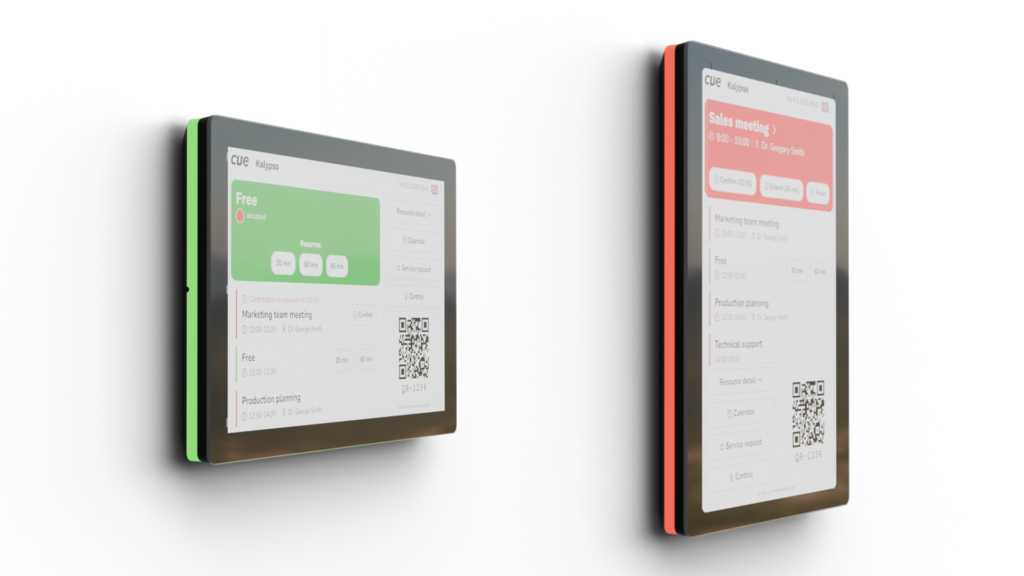

Description The touchONE-7-W is a wired on-wall reservation panel offering a clean, modern design with edge-to-edge front glass and a sleek body. It is an ideal reservation panel for meeting spaces such as meeting rooms, boardrooms, training rooms, and auditoriums. The reservation panel can be operated in landscape or portrait mode. This mode is set in the panel administration. The reservation panel is delivered with a dedicated reservation application, and it works as a direct client for calendar systems, e.g. Microsoft 365, Microsoft Exchange, Google Workspace, CUE Calendar, IceWarp, Zimbra or Kerio Connect. No additional hardware or software is required. The Reservation panel displays the room's current status and the calendar of events. It allows you to reserve the room, extend it, and cancel the current event. Many other functions are available. Each panel offers a simple digital signage functionality - info mode, in which image sequences can be played. The info mode is set in the CUE Admin application. A single cable Ethernet connection provides easy network integration. The touch panel is equipped with Power over Ethernet (PoE) technology, enabling an Ethernet network cable to deliver both data and power. The touch panel installs easily on a glass wall or other flat surface without any wall drilling or surface cutting. When installed, it protrudes only 25 mm from the mounting surface.
🛡️ 2 years warranty
The touchONE-overview is a standalone graphic player that shows the status of several meeting rooms at once on a large…
The touchONE-10-W is a wired 10.1” on-wall reservation panel with edge-to-edge front glass, RGB LED room-status indicators and a built-in…
CUE Assist is a user-friendly planning and reservation tool for quickly finding and booking meeting rooms, workplaces, parking places and…
CUE Addin is a Microsoft Outlook add-in that integrates the reservation of rooms, workstations, parking spaces and other shared resources…
| SKU | CS0661 |
|---|---|
| Touch-screen display | Color a-Si TFT LCD with LED backlight Size 7” / 177.8 mm diagonal, wide screen Resolution Landscape mode 1 280 x 800 pixels Portrait mode 800 x 1 280 pixels Display colors 32-bit (True Color) Transparency 8-bit Alpha blending Pixel pitch 0.116 x 0.116 mm Pixel density 216 ppi White luminance 400 cd/m2 Response time 20 ms Contrast ratio 800 : 1 Viewing angle ±80° horizontal, ±80° vertical Projected capacitive touch overlay Edge-to-edge glass |
| Indicators | RGB LED indicators around the panel’s perimeter create an indirect light effect visible from a distance. Green/red indication for free/occupied room Indication synchronized with the display user interface |
| Built-in sensors | Light sensor for automatic backlight dimming Proximity sensor for automatic backlight switching on |
| Memory | 4 GB RAM 16 GB NAND Flash (EMMC) |
| Buttons | Reset |
| Power supply | Power over Ethernet (PoE), 802.3af / Class 0 compatible |
| Firmware | Dedicated room reservation application Admin Web for setup Regular firmware upgrades |
| Video | Streaming video preview Codecs: H.263, H.264, H.265, MJPEG, MPEG-2, VP8, VP9 |
| Network | 10/100/1000 BaseT LAN, RJ-45 connector 802.1X authentication mechanism supported Proxy Server support |
| Physical | Slim body, edge-to-edge front glass Multisurface, e.g., glass wall installation Compatible with European, Swiss, and US 2-gang / 3-gang standard electrical wall boxes Compatible with VESA standard 75 x 75 mm only with Mounting Adapter 7 Protection IP30 Dimensions 180 x 120 x 16.2 mm / 7” x 4.7” x 0.64” when installed Weight 0.5 kg / 1.1 lb |
| Environment conditions | Operating temperature 10° to 40° C Storage temperature 0° to 60° C Relative humidity 10% to 90% non-condensing |
| Available accessories | Wireless Module W for Wi-fi communication Mounting Adapter 7 for tabletop or angled on-wall installation |
