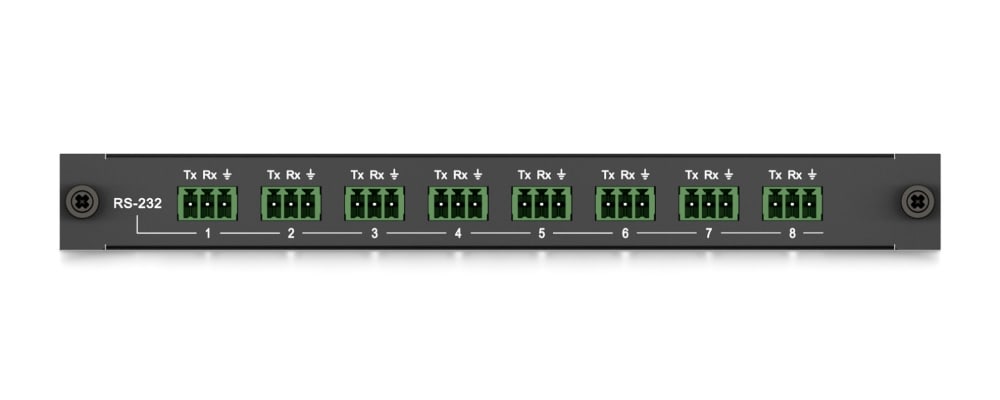

PRO-8RS232
The PRO-8RS232 RS-232 control board offers 8 x bi-directional RS-232 ports for direct serial communication to compatible Blustream HDBaseT™ receivers. The PRO-8RS232 also features quick release card module fittings allowing simple installation into the Custom Pro Matrix hub.
Key Features
- Features 8 x Bi-directional RS-232 ports for serial communication to corresponding Blustream HDBaseT™ zone receivers
- Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub
Request a Quote
🛡️ 5 years warranty
Custom Pro Modular 4k 60Hz 4:4:4 Matrix, HDBaseT™ Matrix
CUSTOM PRO-HUB16
The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their…
| SKU | BSPRO8RS232 |
|---|---|
| PRO-8RS232 | • RS-232 serial ports: 8 x 3-Pin Phoenix connector • Card Dimensions (W x H x D): 190mm x 22mm x 177mm • Dimensions Including Connections (W x H x D): 190mm x 22mm x 188mm • Shipping Weight: 0.5kg • Operating Temperature: 32°F to 104°F (0°C to 40°C) • Storage Temperature : -4°F to 140°F (-20°C to 60°C) |
Package contents have not been specified.
Compatibility information has not been specified.
No files are available for this product.
