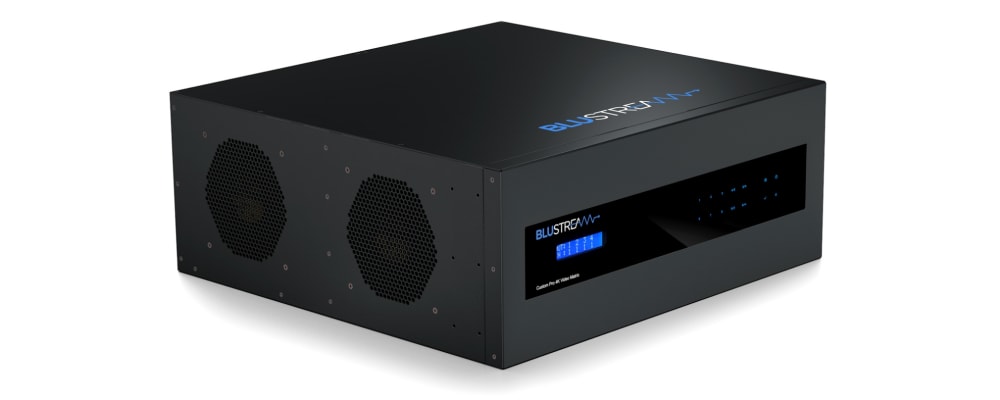

CUSTOM PRO-HUB16

The Custom Pro 4K Matrix achieves new levels of both performance and flexibility. AV installers can now easily specify their desired I/O structure and choose the additional control features required for a specific AV project. The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience. Advanced optional features include audio breakout, simultaneous HDBaseT™ / HDMI outputs, RS-232 pass through, and a web browser interface module for enhanced control and configuration.

Key Features

• Custom Pro Matrix with 12 x modular bays for population of input / output / control boards
• Supports up to 16x video inputs and 16x video outputs using a combination of 2-way and 4-way interchangeable input and output boards
• Supports 4K UHD video up to 4K 60Hz 4:4:4*
• Optional Colour Space Conversion (CSC) boards support HDMI 2.0 18Gbps specification including HDR over HDBaseT™
• Optional CSC boards feature independent downscaling of up to 4K 60Hz 4:4:4 video input to the following formats:
• 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
• 16 x IR outputs for routed control of local source equipment
• 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ Receivers
• Optional RS-232 control board for bi-directional IR control with Blustream HDBaseT™ Receivers
• Optional Analogue and Digital Audio breakout board with line-level volume control
• Web browser interface for control and configuration of Matrix
• Control of Matrix via front panel, RS-232, TCP/IP, IR and Web GUI
• Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ Receivers
• 3rd Party drivers available for major control brands
• Advanced EDID management
• HDCP 2.2 compliant

🛡️ 5 years warranty
