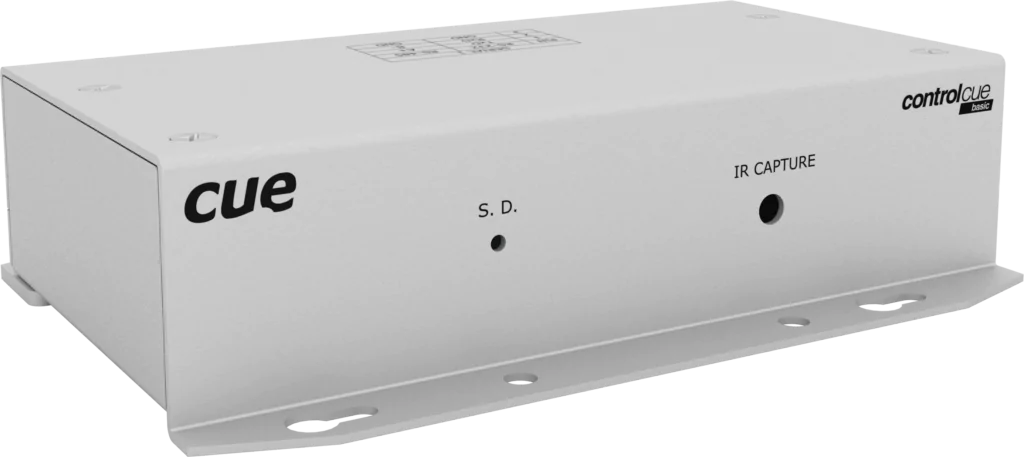

controlCUE-basic is a cost-effective, fully functional IP controller with a keypad port, a bi-directional RS-232/485 port, an occupancy sensor port, four universal ports, and two low-voltage relays.
🛡️ 3 years warranty
Designed for the spaces people use A versatile wall-mounted touch panel for room scheduling, workplace services and other Android-based applications.…
The touchCUE-7-W is a wired on-wall 7” touch panel with edge-to-edge front glass, a 1 280 x 800 projected capacitive…
controlCUE-enocean-d is a fully functional DIN rail IP controller with an EnOcean® 868 MHz wireless radio interface, one bi-directional RS-232/485…
controlCUE-dmx-d is a fully functional DIN rail IP controller with two DMX512 input/output channels, one bi-directional RS-232/485 port and four…
controlCUE-knx-d is a fully functional DIN rail IP controller with a KNX port, one bi-directional RS-232/485 port and four versatile…
controlCUE-dali-d is a fully functional DIN rail IP controller with a DALI port, one bi-directional RS-232/485 port and four versatile…
controlCUE-versatile-d is a fully functional IP controller with eight versatile ports and three bi-directional RS-232/485 ports in a DIN rail…
controlCUE-three is a high-end Ethernet IP-enabled controller with various control ports, recommended for medium to large-scale commercial, government, and residential…
keypadCUE-55 is a fully customizable 8-button control panel compatible with all CUE controllers, with programmable per-button LED indication and swappable…
controlCUE-versatile is a fully functional IP controller with eight flexible I/O versatile ports and three bi-directional RS-232/485 ports, fully compatible…
liteCUE-web is a cost-effective control system that lets users control meeting room devices from their own mobile device via the…
The touchCUE-10 is a wired tabletop touch panel offering a clean modern design with edge-to-edge front glass and a sleek…
| SKU | CS0552 |
|---|---|
| Control ports | • 1x IP control port • 1x Keypad port • 1x Bi-directional RS-232/485 port • 1x Sensor port • 4x Universal port • 2x Low-voltage relay |
| Internal IR sensor | • IR code capture |
| LED indicators | • Located on the network connector • Orange Power - indicates power is presented and the unit is ready. • Green Link - indicates network link and activity. |
| Button | • System Default sets the default IP address and password. |
| Network | • 10/100 BaseT Ethernet • 802.1X authentication mechanism and Proxy server support Connector - RJ-45 |
| Software technologies | • Admin Web • XPL2 inside • Simple Setup for easy configuration without programming |
| Memory | • Internal RAM LPDDR 256 MB • Internal non-volatile flash 256 MB |
| Power supply | • Power over Ethernet (PoE) • IEEE 802.3af / Class 0 |
| Real-time and date | • RTC with battery backup |
| Physical | • Compact aluminum enclosure • Protection IP20 • Dimensions 120 x 30 x 80 mm / 4.7” x 1.2” x 3.2” • Weight 0.2 kg / 0.4 lb |
| Environment conditions | • Operating temperature 10° to 40° C • Storage temperature 0° to 60° C • Relative humidity 10% to 90% non-condensing |
Compatibility information has not been specified.
