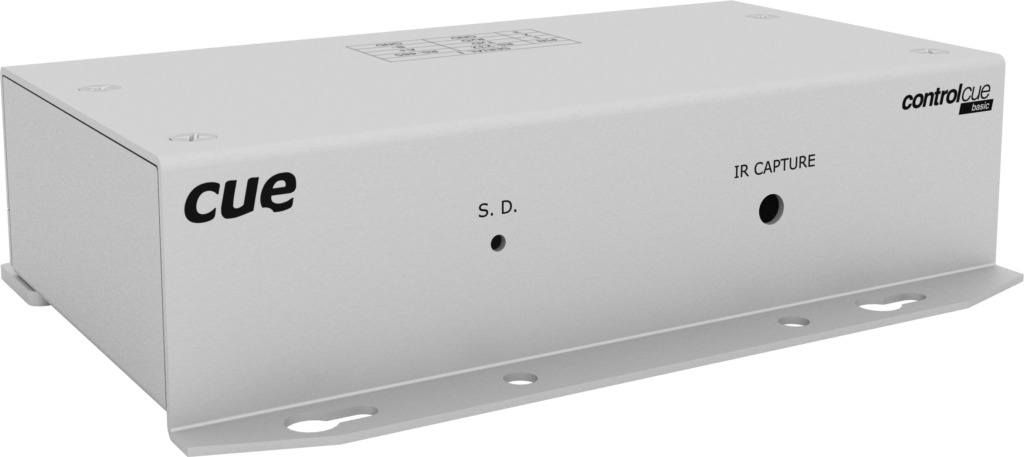

controlCUE-basic is a cost-effective, fully functional IP controller with a keypad port, a bi-directional RS-232/485 port, an occupancy sensor port, four universal ports, and two low-voltage relays.
🛡️ 3 years warranty
Opto-Input Adapter /i is a photosensitive cell for reading any status indicator on a controlled device. It is fastened on…
NFC Reader is an expansion module that adds NFC (13.56 MHz, ISO 14443A) to touchONE and touchCUE 7” and 10.1”…
Mounting Adapter 7 lets the touchCUE-7-W and touchONE-7-W panels be used as a tabletop unit or mounted on a wall…
Mounting Adapter 10 lets the touchCUE-10-W and touchONE-10-W panels be used as a tabletop unit or mounted on a wall…
IR Adapter Set is a set of five infrared emitters for controlling AV devices with IR control. Each emitter has…
DALIpwr is a DIN rail power supply for the DALI bus with a maximum output load of 240 mA, needed…
CUEadapter-24P24 is a wall-mount AC/DC switching power supply with exchangeable AC plugs, providing 24 VDC / 24 W from a…
CUEadapter-24DIN15 is a DIN rail switching power supply delivering 24 VDC / 15 W from a universal 90–264 VAC input.…
keypadCUE-55 is a fully customizable 8-button control panel compatible with all CUE controllers, with programmable per-button LED indication and swappable…
liteCUE-basic is a cost-effective control system pairing the controlCUE-basic controller with an 8-button keypadCUE-55 keypad. The whole system runs on…
PEA208 is a two-channel 0–10 V analog output interface for controlling dimmers, fluorescent lamp ballasts, valves and similar devices, with…
PET102 is a one-channel dimmer for resistive and capacitive loads up to 2 A, suitable for dimming electronic transformers. It…
| SKU | CS0552 |
|---|---|
| Control ports | • 1x IP control port • 1x Keypad port • 1x Bi-directional RS-232/485 port • 1x Sensor port • 4x Universal port • 2x Low-voltage relay |
| Internal IR sensor | • IR code capture |
| LED indicators | • Located on the network connector • Orange Power - indicates power is presented and the unit is ready. • Green Link - indicates network link and activity. |
| Button | • System Default sets the default IP address and password. |
| Network | • 10/100 BaseT Ethernet • 802.1X authentication mechanism and Proxy server support Connector - RJ-45 |
| Software technologies | • Admin Web • XPL2 inside • Simple Setup for easy configuration without programming |
| Memory | • Internal RAM LPDDR 256 MB • Internal non-volatile flash 256 MB |
| Power supply | • Power over Ethernet (PoE) • IEEE 802.3af / Class 0 |
| Real-time and date | • RTC with battery backup |
| Physical | • Compact aluminum enclosure • Protection IP20 • Dimensions 120 x 30 x 80 mm / 4.7” x 1.2” x 3.2” • Weight 0.2 kg / 0.4 lb |
| Environment conditions | • Operating temperature 10° to 40° C • Storage temperature 0° to 60° C • Relative humidity 10% to 90% non-condensing |
Compatibility information has not been specified.
