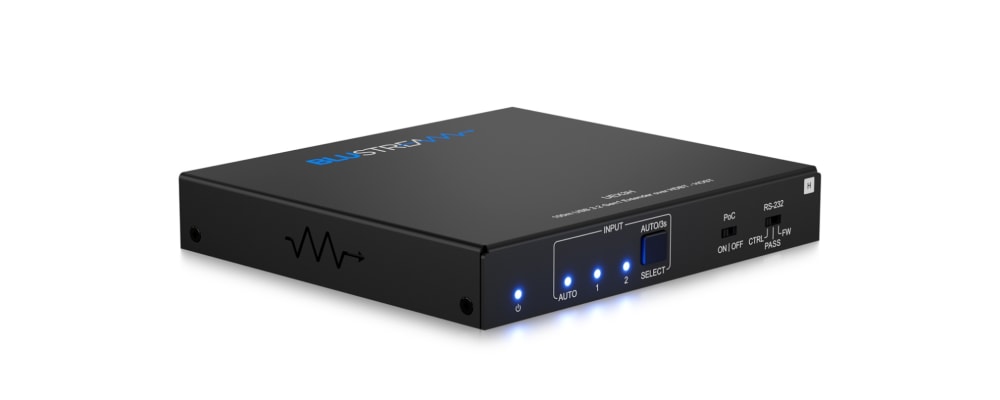

UEX3H

The UEX3H is a USB Host solution that utilises HDBaseT™ technology to allow for remote connectivity of USB 3.2 Gen1 Devices at distances of up to 100m / 330ft over a single CAT6A cable. The UEX3H allows 2 x USB Hosts to be switched between the 2 x local USB Devices as well as the Devices connected to a remote compatible Blustream USB HDBaseT™ Transmitter (Device) extender with support for a combined transmission data bandwidth of up to 5Gbps. The UEX3H is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT™ link. The UEX3H supports both auto or manual Host selection, which can be controlled via the front panel button, or RS-232 from 3rd party control solutions. The UEX3H is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices, and other USB 3.2 Gen1 devices. *Requires compatible Blustream USB 3.2 HDBaseT™ Device product

Key Features

• USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB Host devices and 2 x local USB Devices
• Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
• Backwards compatible with USB 2.0 & 1.1 devices
• Combined USB3.2 Gen1 data transfer rate up to 5Gbps *
• 1 x USB-A & 1 x USB-C port for connection to host devices with manual or auto switching
• 2 x USB-A ports for connection to local devices
• 1 x USB-C host charging port for connection of external power supply to power host device
• Provides up to 500mA combined power to USB devices (up to 500mA per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC) - PSU supplied with the Device end of the link
• Supports bi-directional RS-232 when used with compatible HDBaseT™ products
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup required

🛡️ 5 years warranty
