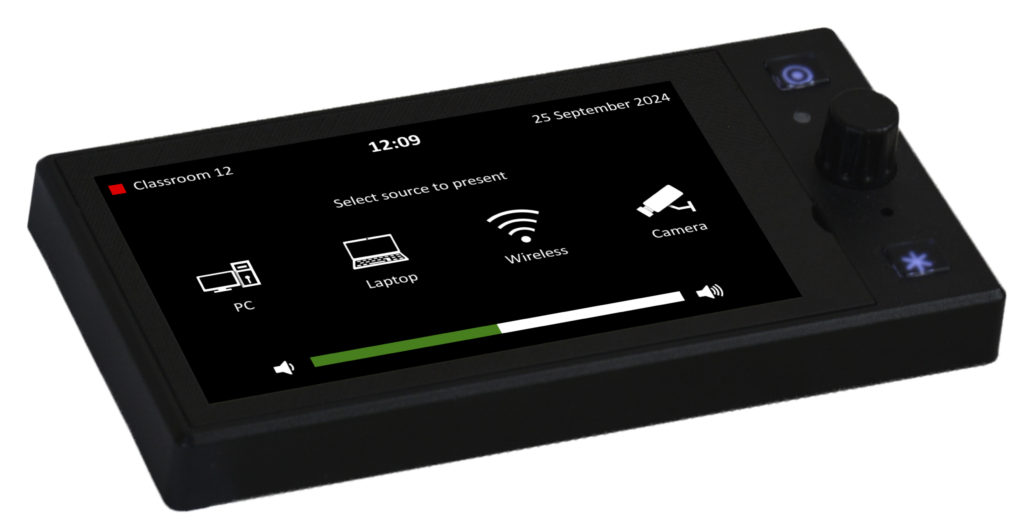

The small touch panel & control system is designed primarily for direct control of IP controlled devices. It is a suitable product for classrooms, training facilities, meeting rooms, etc. The unit can be installed on a table, a wall or other flat surface in landscape or portrait mode. The mounting adapter ensures compatibility with standard electrical wall boxes. The touch panel is fully programmable using CUE Visual Composer, including using graphics libraries to create beautiful display layouts. The illuminated programable buttons can be used for the system on/off and the programmed function. This makes it easier to activate these functions without using the touchscreen. Likewise, the rotary knob with push switch offers easy and quick volume adjustment and mute control as well as other analog type values changing.
🛡️ 2 years warranty
Designed for the spaces people use A versatile wall-mounted touch panel for room scheduling, workplace services and other Android-based applications.…
The touchCUE-7-W is a wired on-wall 7” touch panel with edge-to-edge front glass, a 1 280 x 800 projected capacitive…
controlCUE-enocean-d is a fully functional DIN rail IP controller with an EnOcean® 868 MHz wireless radio interface, one bi-directional RS-232/485…
controlCUE-dmx-d is a fully functional DIN rail IP controller with two DMX512 input/output channels, one bi-directional RS-232/485 port and four…
controlCUE-knx-d is a fully functional DIN rail IP controller with a KNX port, one bi-directional RS-232/485 port and four versatile…
controlCUE-dali-d is a fully functional DIN rail IP controller with a DALI port, one bi-directional RS-232/485 port and four versatile…
controlCUE-versatile-d is a fully functional IP controller with eight versatile ports and three bi-directional RS-232/485 ports in a DIN rail…
controlCUE-three is a high-end Ethernet IP-enabled controller with various control ports, recommended for medium to large-scale commercial, government, and residential…
keypadCUE-55 is a fully customizable 8-button control panel compatible with all CUE controllers, with programmable per-button LED indication and swappable…
controlCUE-versatile is a fully functional IP controller with eight flexible I/O versatile ports and three bi-directional RS-232/485 ports, fully compatible…
controlCUE-basic is a cost-effective, fully functional IP controller with a keypad port, a bi-directional RS-232/485 port, an occupancy sensor port,…
liteCUE-web is a cost-effective control system that lets users control meeting room devices from their own mobile device via the…
| SKU | CS0627 |
|---|---|
| Control ports | • IP control port • 1x Contact closure input |
| Touch-screen display | • Transmissive color active matrix TFT LCD with LED backlight • Size 5” / 127 mm diagonal • Resolution 1280 x 720 pixels • Dot pitch 0.08625 x 0.08625 mm • Brightness 250 cd/m2 • Contrast ratio 800 : 1 • Viewing angle 160° horizontal, 160° vertical • Projected capacitive touch overlay • Edge-to-edge glass |
| Built-in sensors | • Light sensor for automatic backlight dimming • Proximity sensor for automatic backlight switching on |
| Buttons & knob | • Backlit programmable power button • Backlit programmable function button • Rotary knob with push switch • System Default button - requires a tool |
| Memory | • 4 GB RAM • 16 GB NAND Flash (EMMC) |
| Software | • XPL2 runtime for the application created in Cue Visual Composer • Video preview • Web view • Admin Web for setup |
| Network | • 10/100/1000 BaseT LAN, RJ-45 connector • 802.1X authentication mechanism supported • Proxy Server support |
| Power supply | • Power over Ethernet (PoE), 802.3af / Class 0 compatible |
| Physical | • Slim plastic body • Tabletop or on-wall installation • Compatible with standard electrical wall boxes • Protection IP30 • Dimensions 158 x 81 x 29 mm / 6.2” x 3.2” x 1.1” when installed • Weight 0.4 kg / 0.9 lb |
| Environment conditions | • Operating temperature 10° to 40° C • Storage temperature 0° to 60° C • Relative humidity 10% to 90% non-condensing |
Compatibility information has not been specified.
