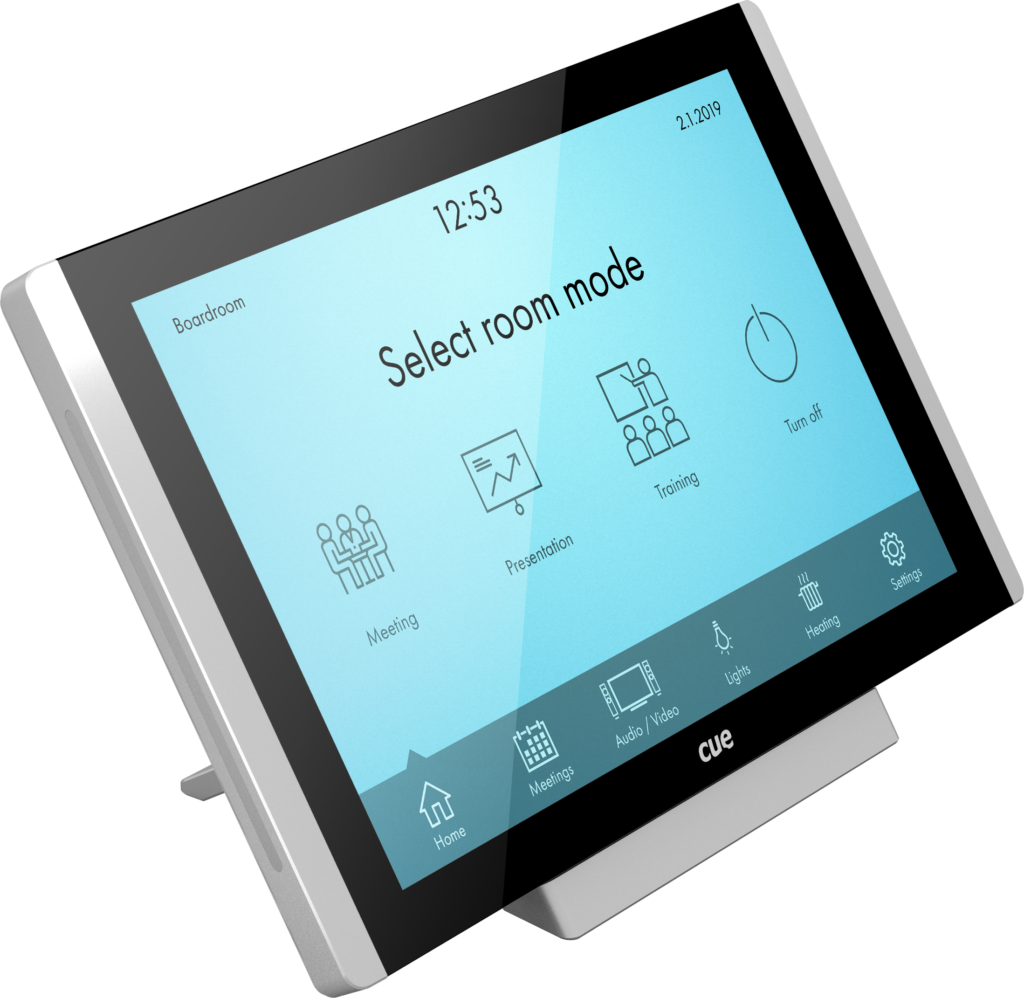

The touchCUE-10 is a wired tabletop touch panel offering a clean modern design with edge-to-edge front glass and a sleek aluminum body with a tabletop stand. It is an ideal front-end for any tabletop application. Fully compatible with CUE controllers and interfaces, this touch panel provides the ultimate one-touch solution for meeting rooms, conference rooms, boardrooms, and high-tech homes. The 10.1” active-matrix touch screen display offers a resolution of 1 280 x 800 pixels, and it produces stunning true-color images. The touch panel is equipped with a projected capacitive touch overlay. A single cable Ethernet connection provides easy network integration. The touch panel is equipped with Power over Ethernet (PoE) technology, enabling an Ethernet network cable to deliver both data and power.
🛡️ 2 years warranty
Designed for the spaces people use A versatile wall-mounted touch panel for room scheduling, workplace services and other Android-based applications.…
The touchCUE-7-W is a wired on-wall 7” touch panel with edge-to-edge front glass, a 1 280 x 800 projected capacitive…
controlCUE-enocean-d is a fully functional DIN rail IP controller with an EnOcean® 868 MHz wireless radio interface, one bi-directional RS-232/485…
controlCUE-dmx-d is a fully functional DIN rail IP controller with two DMX512 input/output channels, one bi-directional RS-232/485 port and four…
controlCUE-knx-d is a fully functional DIN rail IP controller with a KNX port, one bi-directional RS-232/485 port and four versatile…
controlCUE-dali-d is a fully functional DIN rail IP controller with a DALI port, one bi-directional RS-232/485 port and four versatile…
controlCUE-versatile-d is a fully functional IP controller with eight versatile ports and three bi-directional RS-232/485 ports in a DIN rail…
controlCUE-three is a high-end Ethernet IP-enabled controller with various control ports, recommended for medium to large-scale commercial, government, and residential…
keypadCUE-55 is a fully customizable 8-button control panel compatible with all CUE controllers, with programmable per-button LED indication and swappable…
controlCUE-versatile is a fully functional IP controller with eight flexible I/O versatile ports and three bi-directional RS-232/485 ports, fully compatible…
controlCUE-basic is a cost-effective, fully functional IP controller with a keypad port, a bi-directional RS-232/485 port, an occupancy sensor port,…
liteCUE-web is a cost-effective control system that lets users control meeting room devices from their own mobile device via the…
| SKU | CS0559 |
|---|---|
| Control ports | • IP control port |
| Touch-screen display | • IPS transmissive color active matrix TFT LCD with LED backlight • Size 10.1” / 256.5 mm diagonal, wide screen • Resolution 1 280 x 800 pixels • Display colors 32-bit (True Color) • Transparency 8-bit Alpha blending • Pixel pitch 0.1695 × 0.1695 mm • Brightness min. 300 cd/m2 • Response time 15 ms • Contrast ratio 800 : 1 • Viewing angle 170° horizontal, 170° vertical • Projected capacitive touch overlay • Edge-to-edge front glass |
| Indicators | • Programmable RGB LED • Located on the left and right side |
| Built-in sensors | • Light sensor for automatic backlight dimming • Proximity sensor for automatic backlight switching on |
| Buttons | • System Default |
| Memory | • 4 GB RAM • 16 GB NAND Flash (EMMC) |
| Software | • XPL2 runtime for the application created in Cue Visual Composer • Admin Web for setup |
| Video | • Streaming video preview • Codecs: H.263, H.264, H.265, MJPEG, MPEG-2, VP8, VP9 |
| Audio | • Built-in microphone • Built-in speakers |
| Power supply | • Power over Ethernet (PoE), 802.3af / Class 0 compatible • Power consumption1.3 W - screen saver mode • 5.2 W - factory default brightness 70% • 6.3 W - brightness 100% |
| Network | • 10/100/1000 BaseT LAN, RJ-45 connector • 802.1X authentication mechanism supported • Proxy Server support |
| Physical | • Sleek aluminum body, edge-to-edge front glass • Integrated tabletop stand, fixed angle 58° • Protection IP30 • Dimensions 268 x 155 x 121 mm / 10.6” x 6.1” x 4.8” • Weight 1.1 kg / 2.4 lb |
| Environment conditions | • Operating temperature 10° to 40° C • Storage temperature 0° to 60° C • Relative humidity 10% to 90% non-condensing |
Compatibility information has not been specified.
