PRO48HBT70

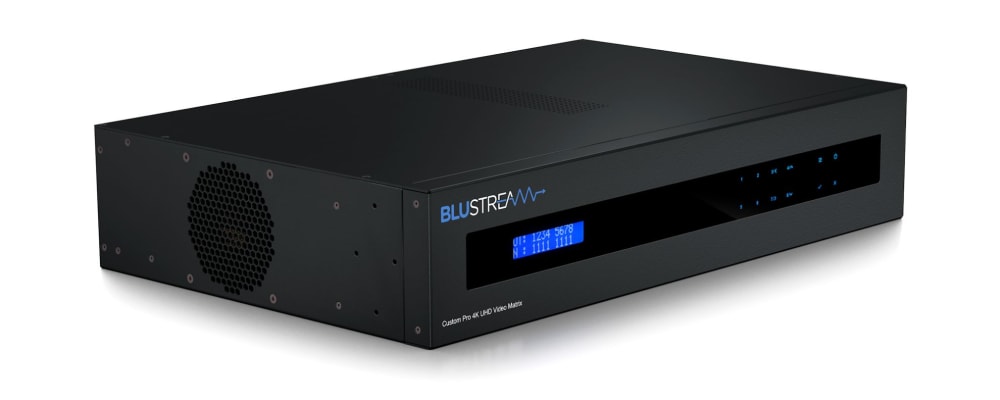

Blustream 4x8 HDBaseT™ Matrix

PRO48HBT70

The PRO48HBT70 is a configured 4K HDCP 2.2 compliant 4x8 HDBaseT™ Matrix, transmitting HDMI, Bi-directional IR and PoC up to lengths of 70m @ 1080p over a single CAT cable. The matrix also provides advanced audio breakout features.  The Custom Pro Matrix has been specifically designed to operate in challenging AV environments. Its robust housing and interlocking board configuration make both installation and maintenance a seamless experience.

Key Features

  • Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
  • Supports 4K UHD video up to 40m @ 4K (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
  • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
  • Control of Matrix via front panel, RS-232, TCP/IP and Web GUI
  • Features 8 x HDMI audio breakouts from corresponding video zone outputs to coaxial digital and analogue L/R audio outputs
  • 8 x IR inputs for distribution of IR to compatible HDBaseT™ receivers
  • Quick release card module fittings allowing simple population of input and output cards
  • Supports PoC (Power over Cable) when used with compatible HDBaseT™ input / output cards
  • Web interface module for control and configuration of matrix
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
