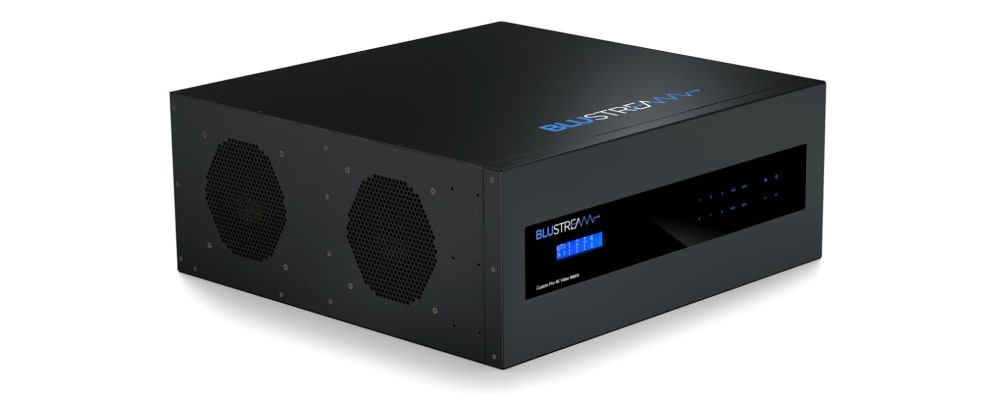

PRO16HBT100CS
Blustream 16x16 HDBaseT™ Matrix

PRO16HBT100CS

The pre-configured range of Custom Pro Matrix achieve new levels of both performance and flexibility. The Custom Pro PRO16HBT100CS has been designed to operate in complex and challenging AV environments.

Key Features

  • Pre-configured Custom Pro matrix bundle with 16 x video inputs, 16 x video outputs, Audio breakout, and 2-way IR control
  • Supports 4K UHD video up to 4K 60Hz 4:4:4 (18Gbps) over HDBaseT™ using Colour Space Conversion up to 70m at 4K 60Hz 4:4:4, or up to 100m at 1080p
  • HDBaseT™ CSC output boards feature independent automatic downscaling of up to 4K 60Hz 4:4:4 video input to the following formats (HDMI outputs are native pass-through):
  • 16 x analogue L/R audio inputs which can be embedded onto corresponding HDMI / HDBaseT™ zone outputs
  • Extend 16 x IR outputs for routed control of local source equipment
  • 16 x IR inputs for distribution of IR to compatible Blustream HDBaseT™ receivers
  • Optional RS-232 control board for bi-directional serial control with equipment connected to Blustream HDBaseT™ receivers (PRO-8RS232 cards sold separately)
  • Audio breakout board with line-level volume control
  • Web browser interface for control and configuration of matrix
  • Control of matrix via front panel, RS-232, TCP/IP and Web GUI / App
  • Supports PoC (Power over Cable) when used with compatible Blustream HDBaseT™ receivers
  • 3rd Party drivers available for major commercial & residential control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Used with Blustream HEX100CS-RX receivers (sold separately)
  • Used with Blustream HEX70CS-RX receivers - if distance at 4K does not exceed 40m, or 70m at 1080p (sold separately)
