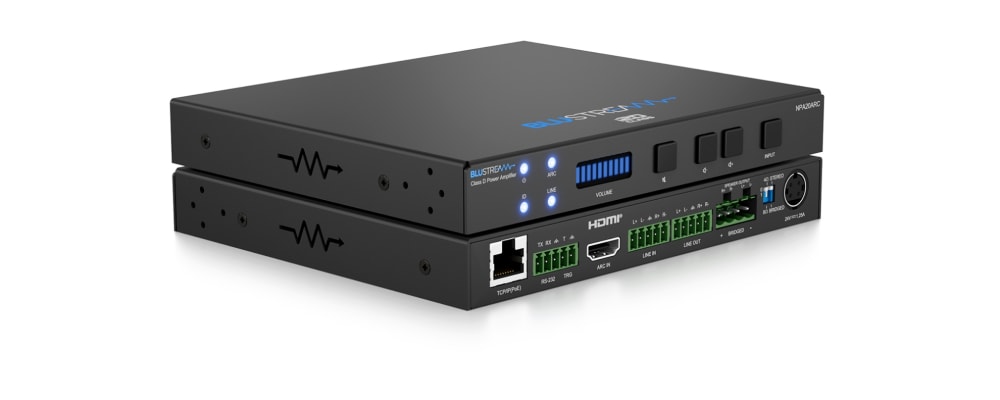

NPA20ARC

The NPA20ARC networked power amplifier features a 2 x 10W (1 x 20W mono) audio output at 4 or 8 ohm, with 2ch HDMI ARC and 2ch balanced / unbalanced analogue audio inputs, allowing for simple connection and control from an ARC compatible display, or analogue audio source device. The NPA20ARC can be powered via PoE or PoE+ from a compatible network switch, or locally should the switch not support PoE. The unit includes the ability to lower the amplifier power output subject to PoE capabilities, a 31 band DSP with EQ, and audio delay capabilities for lip sync correction with any associated video within the zone. A daisy-chain audio output with a centralised control feature for linking up to 4x NPA20ARC or NPA20ANA devices, control from the TV via the HDMI ARC connection (CEC), front panel, RS-232, IP, Web-GUI, or 12V trigger gives maximum flexibility for system integration and simplified control. The NPA20ARC gives installers maximum flexibility for the integration of enhanced audio from within a zone in smaller areas (such as bedrooms) where video is being distributed, saving on cabling from a centralised amplifier; where larger power amplifiers may be considered excessive; or for enhancing voice and audio in meeting spaces.

Key Features

• Advanced network audio amplifier with 2ch HDMI ARC and analogue audio inputs
• Supports 2 x 10W @ 4 / 8 ohm, 1 x 20W @ 4 / 8 ohm
• Supports power via PoE+ on LAN connection or local power supply*
• 2ch HDMI ARC audio input
• 2ch balanced / unbalanced audio in and out with master / slave amp control feature allowing daisy chain of up to 4x NPA20ARC or NPA20ANA amplifiers
• DSP with 31 band EQ with +3dB/-10dB and audio delay
• Local 0V / 5~12V input trigger for automated power control
• Control via ARC, front panel, RS-232 and IP
• Auto standby mode with signal sensing
• In-built web-GUI for setup and control

🛡️ 5 years warranty
