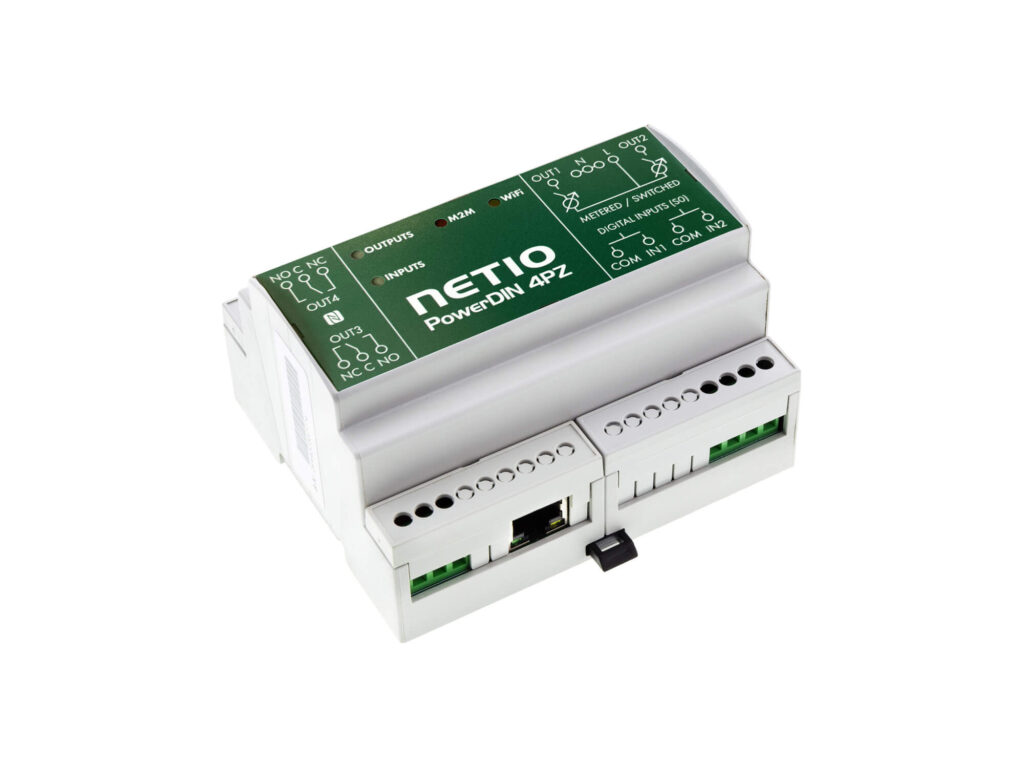

Netio PowerDIN 4PZ

PowerDIN 4PZ is a dual 110-230V / max 16A electricity meter with LAN/WiFi and I/O, designed to fit on a DIN rail. Each of the 4 outputs can be switched on or off independently using the web interface, Open API, or NETIO Cloud. States of two dry-contact digital inputs (including S0 pulse counts) can also be read remotely. Integration with third-party systems using various protocols (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...) is easy thanks to the Open API.

Key Features

• The PowerDIN 4PZ LAN/WiFi electricity meter is typically used for electricity metering and distribution in a DIN electrical cabinet.
• Remote energy consumption monitoring in one or two circuit branches.
• Connecting the pulse output of a 3-phase electricity meter to In1 or In2 in order to measure electricity consumption above 16A.
• Each output can be switched on/off or power-cycled (e.g. to restart all appliances connected to the same circuit branch) from the web interface or the NETIO Cloud service.
• Controlling the charging of e-bikes, boats and other appliances up to 3.6 kW (230V/16A).
• Controlling the outputs using Open API (JSON, Modbus/TCP, SNMP, MQTT-flex, Telnet, ...).
• Integration with various third-party programs and applications.
• Controlling the device from the NETIO Mobile 2 app as long as the app is connected to the same network.
