liteCUE-tap
liteCUE-tap is a cost-effective control system pairing the controlCUE-basic controller with a 4.3” touch-screen tapCUE-4 keypad supporting up to 32…

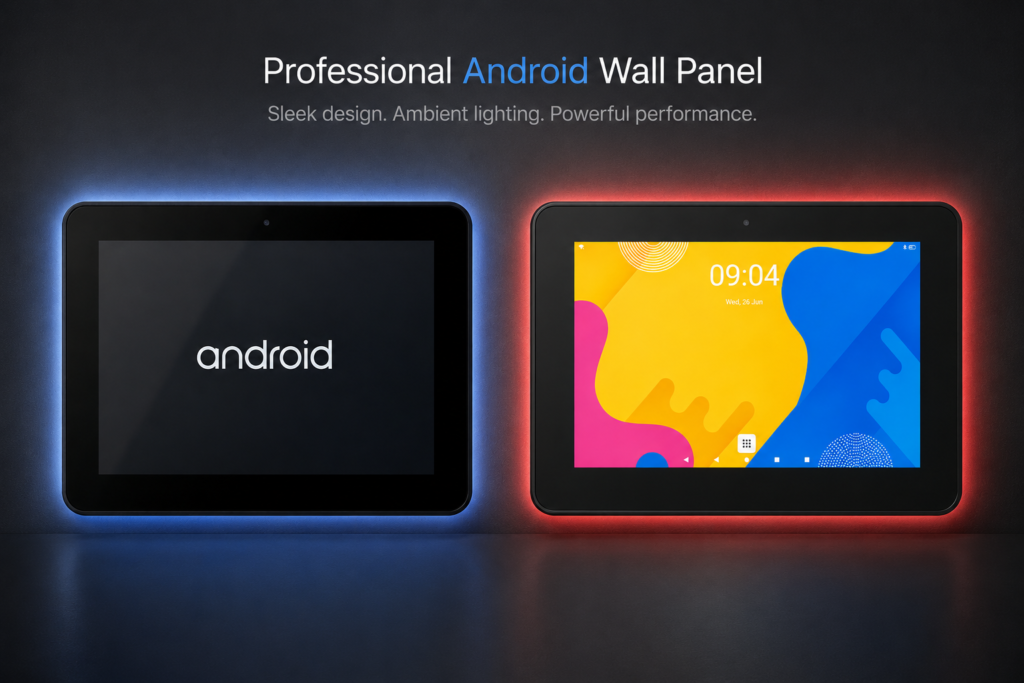

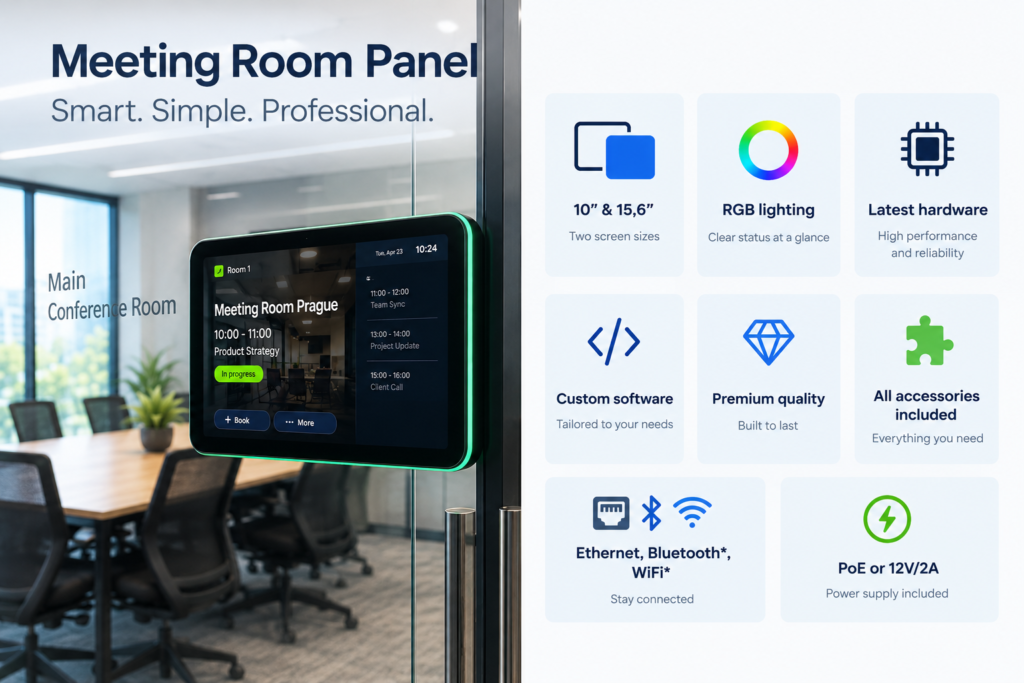

Designed for the spaces people use A versatile wall-mounted touch panel for room scheduling, workplace services and other Android-based applications. Install the panel beside a meeting room to show availability and support on-the-spot reservations. Its 10.1-inch, 10-point capacitive touchscreen provides a clear, responsive interface for scheduling software. Because it runs Android, it can also serve as a configurable touch endpoint for other compatible applications.
🛡️ 2 years warranty
liteCUE-tap is a cost-effective control system pairing the controlCUE-basic controller with a 4.3” touch-screen tapCUE-4 keypad supporting up to 32…
liteCUE-basic is a cost-effective control system pairing the controlCUE-basic controller with an 8-button keypadCUE-55 keypad. The whole system runs on…
The touchCUE-7 is a wired tabletop touch panel offering a clean modern design with edge-to-edge front glass and a sleek…
The small touch panel & control system is designed primarily for direct control of IP controlled devices. It is a…
Description The touchONE-7-W is a wired on-wall reservation panel offering a clean, modern design with edge-to-edge front glass and a…
| SKU | SPC-C101PB-00-OEM |
|---|---|
| Display | 10.1 in HD, full-view Resolution 1280x800px Brightness 300 cd/m² Contrast 1000:1 Viewing angle 85° / 85° / 85° / 85° |
| System & touch | Processor Rockchip RK3568 CPU Quad-core 64-bit Cortex-A55 Memory 2 GB RAM Storage 32 GB internal Operating system Android 13 Touch input 10-point capacitive |
| Network | Ethernet 100 Mbps, RJ45 PoE Supported via RJ45 Bluetooth 5.2 WiFi 802.11 b/g/n |
| Ports & connections | 1 × USB 2.0 + 1 × USB 3.0 TF / microSD slot HDMI output 3.5 mm headphone jack DC input, 5.5 × 2.1 mm |
| Audio, camera & lighting | Microphone Built-in, 1 Speakers 2 x 2W Camera 2MP standard Status lighting RGB LED strip |
| Physical & environment | Panel dimensions 266 × 186 × 26.4 mm Net weight 1,2kg Operating temperature 0 to 50 °C Mounting glass and wall |
