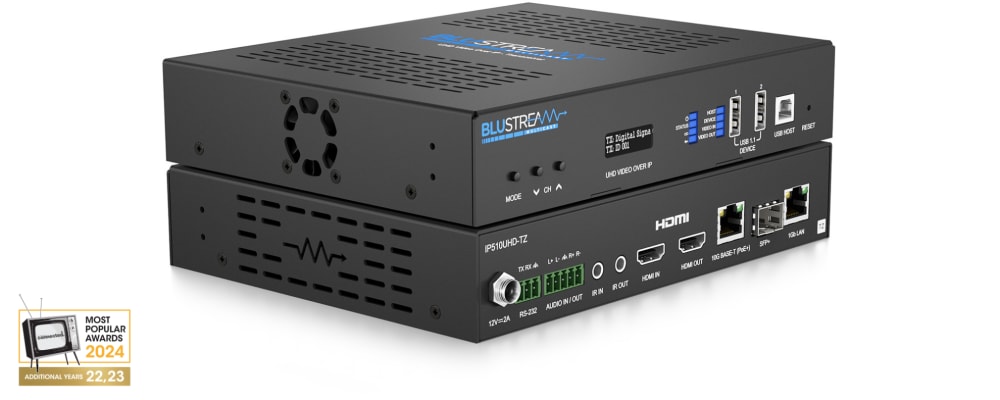

IP510UHD-TZ
Blustream 4K Uncompressed Video over IP (SDVoE)

IP510UHD-TZ

The Blustream IP510UHD Transceiver delivers high-performance, bi-directional video extension, functioning simultaneously as both an encoder (TX) and decoder (RX) - ideal for advanced AV installations. As an SDVoE compliant video over IP solution, the IP510UHD offers uncompromised 4K video transmission with zero latency, supporting both copper and fibre (SFP+) 10Gbps network connectivity. The IP510UHD-TZ supports HDMI 2.0, including HDR (High Dynamic Range), 10/12-bit colour depth, and multi-channel HD audio distribution. Designed for versatility, the IP510UHD-TZ includes multi-view functionality, allowing up to 16 individual sources to be displayed on a single screen in various layout configurations. It also enables seamless transmission of multiple control and data signals alongside 4K video and audio, including IR, RS-232, USB 1.1 (KVM), CEC and 1Gb Ethernet pass-through. Engineered for demanding 4K HDMI environments where image quality and zero-latency performance are critical, the IP510UHD-TZ is ideal for scenarios where source devices and displays are co-located. Multiple units can be integrated into a flexible video over IP matrix system, supporting both multi-view and video wall applications.

Key Features

  • Advanced SDVoE 4K UHD video over 10Gb managed network with visually lossless compression and zero latency
  • HDMI 2.0 18Gbps specification with pass-through for resolutions up to 4K 60Hz 4:4:4, and resolutions supporting 10/12-bit colour, and HDR*
  • Transceiver can be used simultaneously as an encoder (TX) and decoder (RX) from a single 10Gbps connection
  • Supports video scaling, and single-frame switching where scaling is deployed
  • Multi-view output capabilities allowing for up to 16 independent sources to be displayed on a single output
  • Video wall functionality for creating arrays of differing sizes and layouts
  • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
  • Fixed signal routing capabilities, for creating a permanent connection between any TX and RX for dedicated IR, RS-232, CEC and USB 1.1 control pass-through
  • USB end-to-end / point-to-point pass-through (USB 1.1 spec only)
  • Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
  • 10/100/1000BaseT Ethernet pass-through
  • Supports bi-directional 5V or 12V IR pass-through
  • 10Gbps copper or SFP+ network connectivity
  • PoE+ (Power over Ethernet) to power Blustream Multicast products from a PoE+ switch
  • HDCP 2.2 compliant with advanced EDID management
  • Local 12V 2.5A power input (should Ethernet switch not support PoE+, PSU sold separately)
  • Fully interoperable with the Blustream IP500UHD-TZ (selectable transceiver)
  • The Blustream SDVoE platform features 4 operational modes:
Request a Quote

🛡️ 5 years warranty
