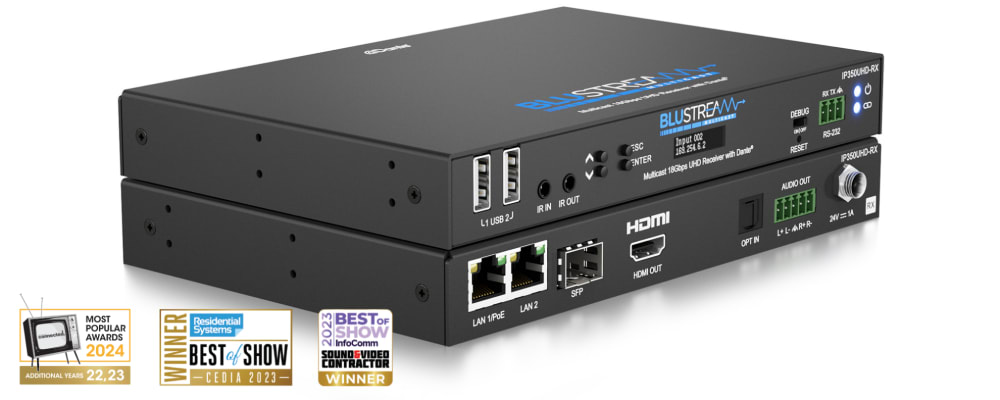

IP350UHD-RX

The Blustream IP300UHD series Video over IP distribution platform allows virtually latency free (1 frame) distribution of 4K 18Gbps HDMI video over a 1Gb managed network. Featuring full interoperability with the IP300UHD product line, the IP350UHD-RX is an industry leading Dante enabled 4K HDMI receiver that, using visually lossless compression technology, delivers 18Gbps HDMI, ARC / eARC / optical audio return, embedded audio, Dante & AES67 audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m / 328ft over standard copper network architecture, or greater distances using the in-built fibre SFP network interface. The IP350UHD-RX can support both video and Dante audio distribution from a single network. A second RJ45 connection allows for the Dante audio network interface to be segregated from the video over IP network for larger systems, or where the networks need to be managed independently. With a full 18Gbps HDMI scaling chipset on-board, the HDMI output can be adjusted to lower resolutions where legacy displays are required in the same system as full 4K distribution. The scaling capabilities of this unit also allows for video walls to be created where needed. The unit can be powered via PoE from the network switch, or locally should the switch not support PoE. With multiple configuration options available, the flexibility of a video over IP platform makes this solution ideal for a variety installation types across commercial and residential systems.

Key Features

• Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
• Virtually unlimited system size
• Extends HDMI up to a distance of 100m over a single CAT cable
• SFP port for signal distribution over fibre
• Supports up to 4K UHD 60Hz 4:4:4
• Supports HDR
• Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
• Extends HDMI and Dante up to a distance of 100m over a single CAT cable
• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• PoE (Power over Ethernet) to power Blustream unit from PoE switch
• HDCP 2.2 compliant with full 18Gbps scaling capabilities for inclusion of non-4K / legacy displays whilst distributing 4K to other parts of the system
• Analogue L/R audio output supports both balanced and unbalanced audio signals
• HDMI ARC, eARC or optical audio return from display to an IP300UHD or IP350UHD transmitter
• Optical (S/PDIF) input for 2ch optical audio return that can be fed into Dante network
• OLED front panel display for advanced system information and manual configuration
• Optional 24V power supply (should Ethernet switch not support PoE)
• Compatible with Blustream IP300UHD-TX and IP350UHD-TX/RX products
• Features 4 operational modes:

🛡️ 5 years warranty
