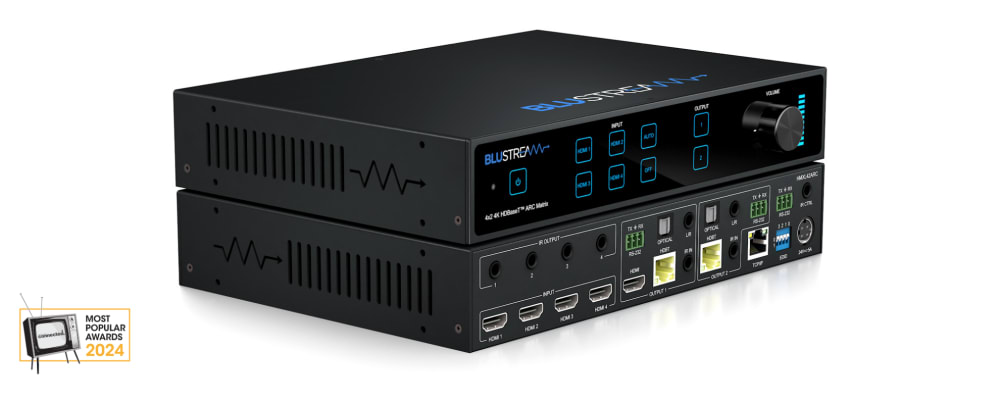

HMXL42ARC-KIT
Blustream 4x2 HDBaseT™ Matrix

HMXL42ARC-KIT

Our Essential 4x2 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL42ARC-KIT is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable. The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs, manual or auto source selection, independent audio matrix and a web browser interface module for control and configuration of the Matrix. The HMXL42ARC-KIT is supplied with 2 x HDBaseT™ receivers.

Key Features

  • Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
  • Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
  • Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
  • Output 1 features simultaneous HDMI and HDBaseT™ output
  • Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports 4K 60Hz 4:4:4 UHD video up to 40m
  • Extends HDMI 1080p video up to 70m
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
  • 8 x 2 audio matrix that is independently controllable from video.
  • Audio source inputs include:
  • Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs
  • Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
  • Web interface module for control and configuration of matrix
  • Supports bi-directional IR on all HDBaseT™ outputs
  • Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
  • 3rd Party drivers available for all major control brands
  • Advanced EDID management
  • HDCP 2.2 compliant
  • Supplied with 2 x RX70CS HDBaseT™ receivers
Request a Quote

🛡️ 5 years warranty
