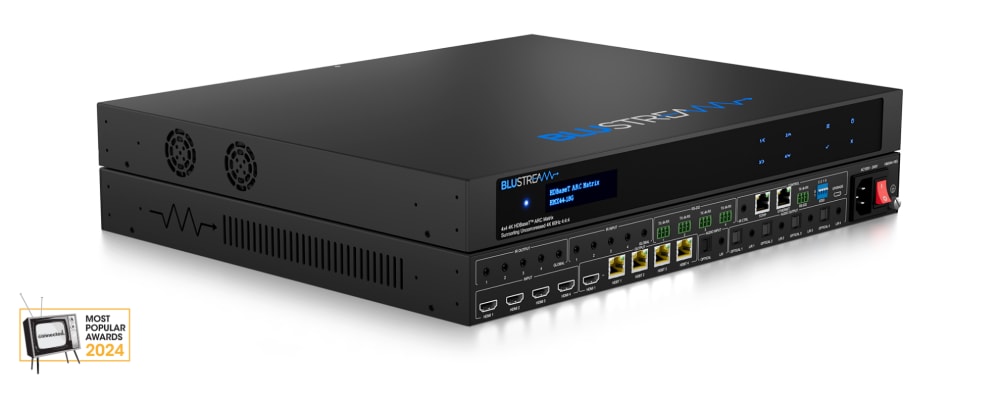

HMX44-18G-KIT
Blustream 4x4 HDBaseT™ Matrix

HMX44-18G-KIT

The HMX44-18G Matrix is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising HDBaseT3™ technology to deliver HDMI, Bi-directional IR & RS-232, ARC, 1Gb Ethernet, and PoC up to lengths of 100m over a single CAT6A cable. The HMX44-18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ resulting in the ultimate in picture quality for your critical viewing areas. The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video smart scaling on HDBaseT™ outputs, and an independent 14x4 audio matrix, and ARC. The HMX44-18G includes an in-built web browser interface module for control and configuration of the Matrix, and RS-232, IR and 1Gb Ethernet pass through to enable seamless 3rd party control integration.

Key Features

  • Advanced uncompressed, unconverted, HDMI over HDBaseT3™ technology offering distribution of bit-for-bit 4K HDMI video and audio over a single CAT6A cable
  • Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs
  • Output 1 features a simultaneous HDMI and HDBaseT™ output
  • Supports distribution of uncompressed HDMI2.0 18Gbps specification including 4K 60Hz 4:4:4 UHD video up to 100m*
  • Supports distribution of the latest HDR resolutions including HDR10/10+
  • 14x4 Audio Matrix independently controllable from video. Audio source inputs include:
  • Supports bitstream passthrough of multichannel surround sound including object-based audio formats in line with HDMI specifications
  • Integrated Ethernet switch (LAN Serving) when used with Blustream RX18G receiver (1Gb maximum)
  • Web interface module for control and configuration of the Matrix
  • Supports bi-directional IR and RS-232 on all HDBaseT™ outputs
  • Control via front panel, IR, iOS / Android App, RS-232 and TCP/IP
  • Supports PoC (Power over Cable) to power the supplied HDBaseT™ receivers
  • Advanced EDID management and HDCP 2.3 compliant
  • Supplied with 4 x RX18G HDBaseT™ Receivers
Request a Quote

🛡️ 5 years warranty
