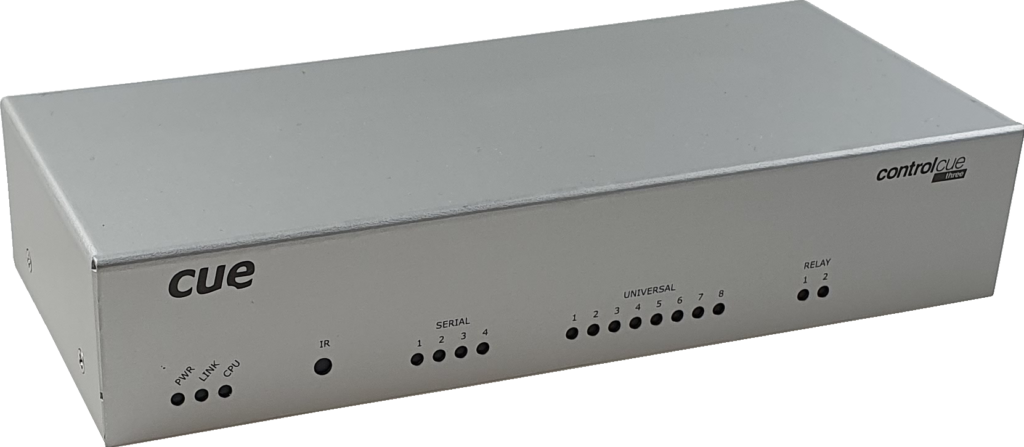

controlCUE-three is a high-end Ethernet IP-enabled controller with various control ports, recommended for medium to large-scale commercial, government, and residential applications.
🛡️ 3 years warranty
Opto-Input Adapter /i is a photosensitive cell for reading any status indicator on a controlled device. It is fastened on…
NFC Reader is an expansion module that adds NFC (13.56 MHz, ISO 14443A) to touchONE and touchCUE 7” and 10.1”…
Mounting Adapter 7 lets the touchCUE-7-W and touchONE-7-W panels be used as a tabletop unit or mounted on a wall…
Mounting Adapter 10 lets the touchCUE-10-W and touchONE-10-W panels be used as a tabletop unit or mounted on a wall…
IR Adapter Set is a set of five infrared emitters for controlling AV devices with IR control. Each emitter has…
DALIpwr is a DIN rail power supply for the DALI bus with a maximum output load of 240 mA, needed…
CUEadapter-24P24 is a wall-mount AC/DC switching power supply with exchangeable AC plugs, providing 24 VDC / 24 W from a…
CUEadapter-24DIN15 is a DIN rail switching power supply delivering 24 VDC / 15 W from a universal 90–264 VAC input.…
keypadCUE-55 is a fully customizable 8-button control panel compatible with all CUE controllers, with programmable per-button LED indication and swappable…
liteCUE-basic is a cost-effective control system pairing the controlCUE-basic controller with an 8-button keypadCUE-55 keypad. The whole system runs on…
PEA208 is a two-channel 0–10 V analog output interface for controlling dimmers, fluorescent lamp ballasts, valves and similar devices, with…
PET102 is a one-channel dimmer for resistive and capacitive loads up to 2 A, suitable for dimming electronic transformers. It…
| SKU | CS0595 |
|---|---|
| Network | • 10/100/1000 BaseT LAN, RJ-45 connector • 802.1X authentication mechanism supported • Proxy Server support |
| Control ports | • IP control port • 4x Bi-directional RS-232/485 port • 8x Universal port • 2x Low-voltage relay |
| Internal IR sensor | • IR code capture |
| LED indicators | • PowerBlue - power is presented, and the unit is ready. • LinkGreen - network link and activity. • CPUYellow - confirms the system default function is performed. • SerialGreen - serial data is being transmitted. • Red - serial data is being received. • UniversalGreen - output is closed. • Yellow - IR or serial data is being transmitted. • RelayRed - output is closed. |
| Button | • System Default - sets the default IP address and password. |
| Real-time and date | • RTC with battery backup |
| Memory | • 2 GB RAM • 16 GB NAND Flash (EMMC) |
| Software technologies | • Admin Web • XPL2 inside |
| Power supply | • 12÷28 VDC, max. 4 W, 2-pin 3.5 mm connector • Power over Ethernet, 802.3af compatible |
| Physical | • Compact aluminum enclosure • Dimensions 210 x 42 x 92 mm / 8.27” x 1.7” x 3.6” • 1/2 rack space, 1 U • Weight 0.3 kg / 0.7 lb |
| Environment conditions | • Operating temperature 10° to 40° C • Storage temperature 0° to 60° C • Relative humidity 10% to 90% non-condensing |
Compatibility information has not been specified.
