Home Cue System controlCUE-dmx-d
Cue System Control

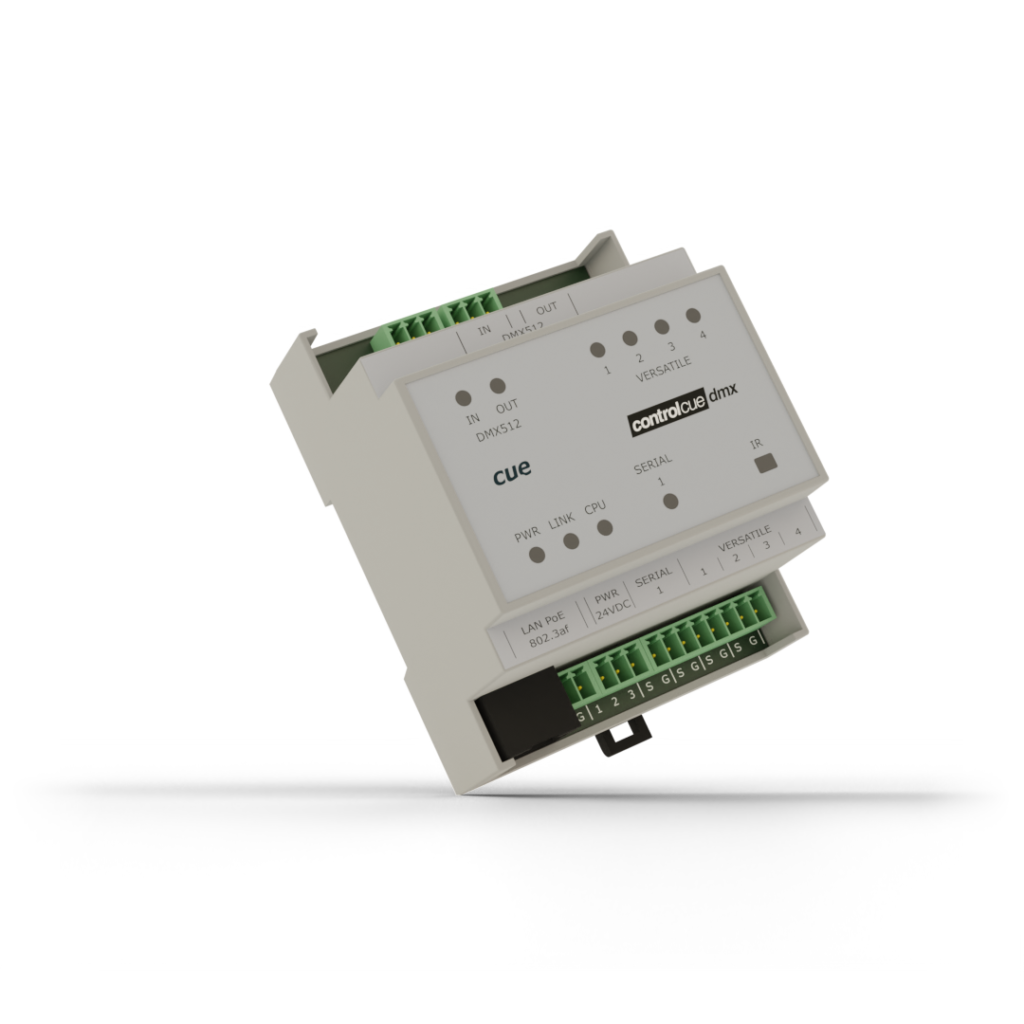

controlCUE-dmx-d

controlCUE-dmx-d is a fully functional DIN rail IP controller with two DMX512 input/output channels, one bi-directional RS-232/485 port and four versatile ports. It connects Cue System to the DMX512 bus and can also work as a standalone device.

Key Features

  • Wired 10/100 BaseT LAN
  • 1x IP control port
  • 2x DMX512 port
  • 1x Bi-directional RS-232/485 port
  • 4x Versatile port
  • ARM® processor platform
  • Internal RAM LPDDR 64 MB, flash 256 MB
  • Onboard real-time clock
  • IR code capture sensor
  • Front panel indicators
  • Power over Ethernet or 24 VDC power supply
  • DIN rail plastic enclosure, width 4 modules
  • Web server and Admin Web for setup
Request a Quote
